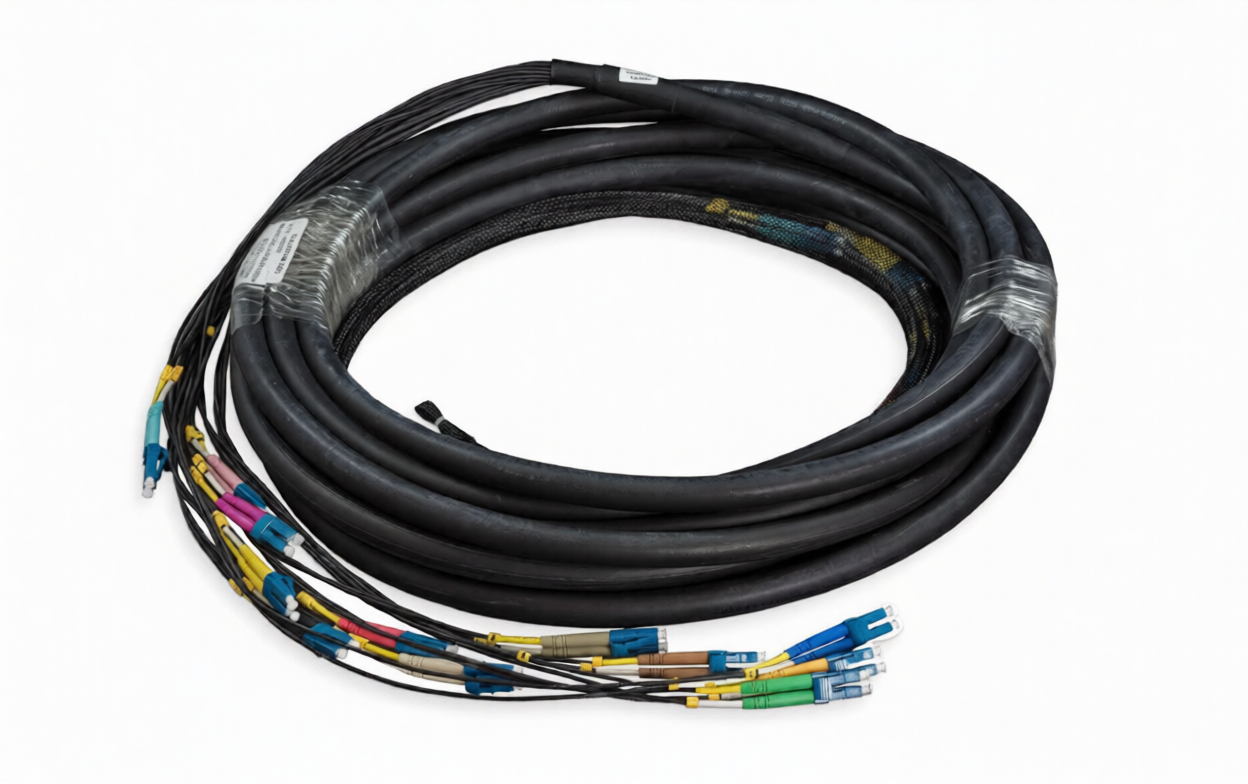

MasterLine 24fo LC

MasterLines 24fo LC are 24-fiber LC breakout cables. They enable connections between base-of-tower equipment and Optical/Hybrid enclosures in FTTA networks. They are designed for outdoor installation.

MasterLines 24fo LC are ideally suited for use with optical enclosures and drawers: HDB24, ODB24 and ODU24/48.

• Connector: 12 LC-PC Duplex on each end
• Color-coded sleeves according to the French color code
• Fiber type: G657 A1
• Ferrule: zirconia ceramic
• Optical performance
  • Insertion loss: ≤0.30dB
  • Return loss: ≥50dB
• Lengths (m): 1, 2, 5, 10, 15, 20, 30, 40, 50…100 (other lengths on request)
• Diameter: 15.2mm
• Operating temperature: -40ºC to +70ºC
